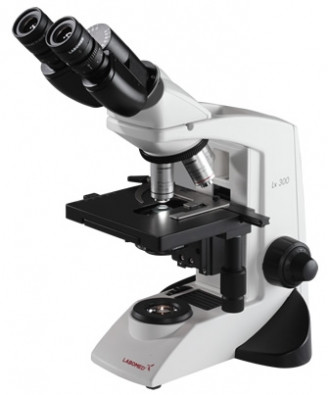

LaboMed Lx 300 Binocular Infinity MIcroscope with "Butterfly" Siedentopf Head

Today's educators call for a classroom microscope that would be ideal for continued education and pre-clincial programs. Demanded is a product with crisp optics, ergonomic features for a mature classroom, and a price point that supports institutional purchases. Provided is the Lx 300, putting all requests to rest.

• Stand

  Single mold sturdy stand with anti-rust materials. Ergonomic base for hand rest and greater stability.

• Objective

  EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

• Focusing

  Coaxial coarse and fine focus on ball drive system for smooth operation

• Illumination

  Intensity controlled LED (up to 50,000 hours of LED life)

• Electronics

  Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer

• Eyepiece

  Wide field 10x/18mm with foldable eye guards, lockable, antifungal

• Mechanical Stage

  Double plate stage 150 x 135mm, X-Y travel range 75mm x 40mm with low-height controls. Hard coated surface for scratch resistance. Double specimen holder.

• Nosepiece

  Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip

• Viewing Body

  Siedentopf Binocular (Butterfly style) or Trinocular head, 45° inclined, 360° rotatable, with adjustable viewing height up to 40mm, IPD 48 - 75mm

• Condenser

  Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on metal guides
